Print Engines
Robust and reliable
As the world’s largest supplier of OEM print engines, SATO continues to manufacture print engines that set the standard of operation for the print & apply industry.
Designed especially for integration in to the markets’ most reliable print & apply systems, each engine provides reliable performance day-in day-out for the most demanding, high duty-cycle applications around the world globally.
When reliability and performance are a must, ask for a SATO OEM print engine from your print & apply vendor.
Print Engines from SATO:
Contact us

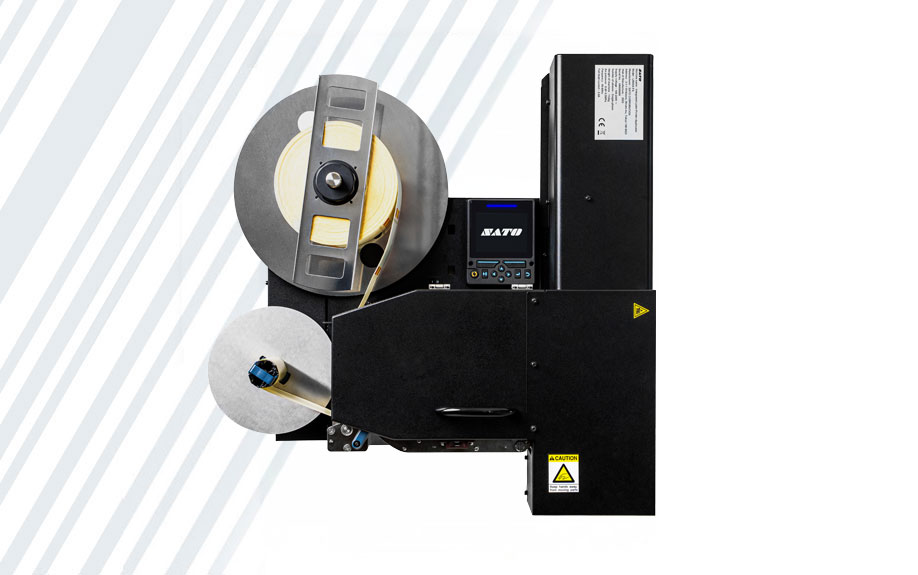

LR4NX - 4" Applicator
The SATO LR4NX applicator is a versatile, IoT-enabled solution designed to meet diverse industrial needs with a wide range of customisable options. Available in various configurations, including left-hand and right-hand setups, and specialised models like the Cylinder Jet (CJ-Type), it offers tailored application methods for maximum efficiency. The LR4NX minimises downtime by up to 25 hours annually through advanced self-maintenance, real-time monitoring, and easy tool-free part replacements. Its robust design, large ribbon roll capacity (600m), and intuitive interface ensure seamless operation, while multi-language support and next-gen smart printing features make it the ideal choice for complex, high-demand environments.
The device comes with built-in Application Enabled Printing (AEP) and is also compatible with SATO Online Services (SOS).
Suitable for:
Transport & Logistics
Food Industry
Automotive
Manufacturing
Features
Print Method
Direct Thermal / Thermal Transfer
Print Resolution
8 dots/mm (203 dpi); 12 dots/mm (305dpi)
Print Width
104mm (4” )
Print Speed
10ips
Screen
3.5-inch large LCD screen
Languages
Support 31 display and 47 print languages. Also contains built-in Unicoded scalable fonts.
Emulations
SZPL, SIPL, SDPL
Interfaces
Data Interface: LAN 10BASE-T/100BASE-TX (IPv4/IPv6, SNMPv1~v3 MIB-Ⅱ, FTP, NTP, LPR, DHCP, Http/Https), RS-232C, IEEE1284
For configuration: USB2.0 High-speed TypeA
Memory
User Area: Max. 619MB. Receive Buffer: Max. 2.95MB (Buffer near full at 2MB, released at 1MB)
Benefits
Easy and intuitive to use
- 3.5-inch large LCD screen. Guidance videos to help users e.g. load labels, ribbons or replace service parts easily
- Different display colours to show printer status at a glance
- 3-colour stack light
- Quickly alert users to high priority conditions from a distance
Packed with useful functions
- Accurate and stable operation for peace of mind
- Head cleaning notification / Command error indication / Password lock / Printer settings backup / clone
Multi-language capability
- Support 31 display and 47 print languages
- Also contains built-in Unicoded scalable fonts
Next-generation smart printing
- * Support Application-Enabled Printing (AEP)
- Connect printer directly to peripheral devices for standalone printing or PLCs for integrated printing without costly computers
- Pre-installed Barcode Checker Software Support
S84NX - 4" Print Engine
The new 4-inch S84NX print engine from SATO is as robust as they come. Perfect for the harshest industrial environments due to its metal construction for heavy duty printing, it maximises productivity with print speeds of up to 16ips with high throughput, while minimising downtime with tool-free print head replacement.
Suitable for:
Healthcare
Transport & Logistics
Food Industry
Automotive
Manufacturing
Features
Print Method
Thermal and Direct Transfer or Direct Thermal Only Model
Print Resolution
203 dpi, 305 dpi, 609 dpi
Print Width
104mm - 4.1"
Print Speed
406mm/s - 16 inch per second (203 dpi)
356mm/s - 14 inch per second (305 dpi)
152mm/s - 6 inch per second (609 dpi)
Ribbon Length
450 m (1476.4 ft.) when width is less than 39.5 mm(1.56”)
600 m (1968.5 ft.) when width is equal or more than 39.5 mm(1.56”)
Emulations
SZPL, SDPL, SIPL
Interfaces
USB, RS232C, LAN, EXT I/O
Options
WLAN
Printer Memory
CPU1: 2GB ROM, 256MB RAM, CPU2: 4MB ROM, 64MB RAM
Benefits
- RFID
- Easy operation
- Ease “icon based” menu setup
- Menu setup available in 31 different languages
- Enhanced connectivity for USB devices
- Simple standalone mode
- Durable and robust metal design
- Easy maintenance
- Multiple language support
- High-speed printing & fast throughput
- Standard emulations on board
- Environmentally friendly
- Right (RH) & Left (LH) models available
- TFT Full color LCD 3.5 inches display (320 x 240)
- Face in / Face out Ribbon support
Accessories
Standard
- I/O EXT interface
Optional
- RFID option (factory installed)
- USB Memory Expansion
- Cleaning Kit
- Wireless Kit

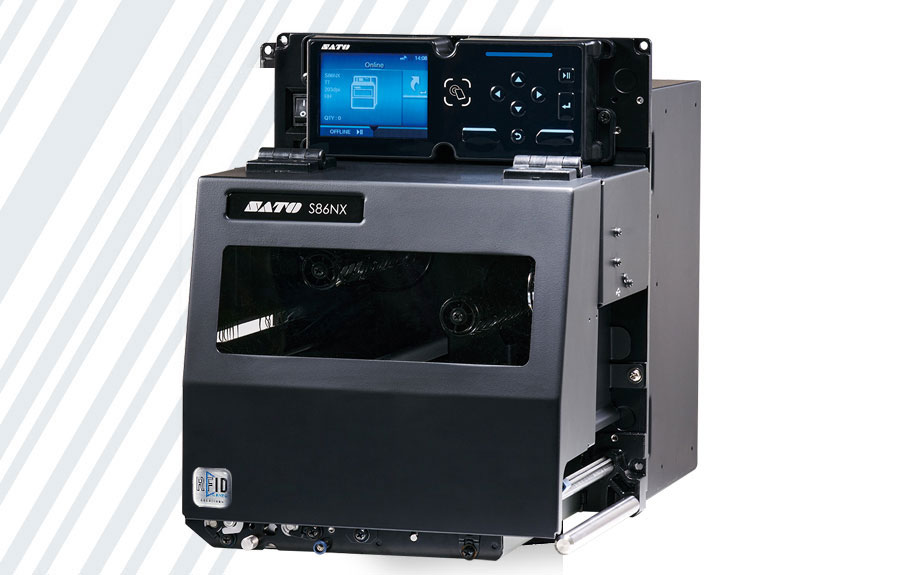

S86NX - 6" Print Engine
The new 6-inch S86NX print engine from SATO is as robust as they come. Perfect for the harshest industrial environments due to its metal construction for heavy duty printing, it maximises productivity with print speeds of up to 14ips with high throughput, while minimising downtime with tool-free print head replacement.
Suitable for:
Healthcare
Transport & Logistics
Food Industry
Automotive
Manufacturing
Features
Print Method
Thermal and Direct Transfer or Direct Thermal Only Model
Print Resolution
203 dpi, 305 dpi
Print Width
167.5mm - 6.59"
Print Speed
356mm/s - 14 inch per second (203 dpi)
305mm/s - 12 inch per second (305 dpi)
Ribbon Length
600m (1968.5ft.) when ribbon width is 59 mm (2,32”) to 177mm (6,96”)
Emulations
SZPL, SDPL, SIPL
Interfaces
USB, RS232C, LAN, EXT I/O
Options
WLAN
Printer Memory
CPU1: 2GB ROM, 256MB RAM, CPU2: 4MB ROM, 64MB RAM
Benefits
- RFID
- Easy operation
- Ease “icon based” menu setup
- Menu setup available in 31 different languages
- Enhanced connectivity for USB devices
- Simple standalone mode
- Durable and robust metal design
- Easy maintenance
- Multiple language support
- High-speed printing & fast throughput
- Standard emulations on board
- Environmentally friendly
- Right (RH) & Left (LH) models available
- TFT Full color LCD 3.5 inches display (320 x 240)
- Face in / Face out Ribbon support
Accessories
Standard
- I/O EXT interface
Optional
- RFID option (factory installed)
- USB Memory Expansion
- Cleaning Kit
- Wireless Kit
S84-EX - 4" OEM Print Engine
The S84-EX offers significant industry advancements in quality imaging, exceptional throughput and incomparably easy operation, setup and maintenance. The new generation of SATO Print Engines delivers flexibility and convenience, providing customers with numerous interfaces, as well as tool-less maintenance. Optional wireless LAN and Bluetooth allow for even greater connectivity in continuously changing operating environments.
Suitable for:
Healthcare
Transport & Logistics
Food Industry
Automotive
Manufacturing
Features
Print Method
Direct Thermal & Thermal Transfer or Direct Thermal Only
Print Resolution
203 dpi, 305 dpi, 609 dpi
Print Width
104mm - 4.1"
Print Speed
406mm/s - 16 inch per second
356mm/s - 14 inch per second
152mm/s - 6 inch per second
Ribbon Length
600m
Emulations
SZPL, SDPL
Interfaces
USB, LAN, RS232C, IEEE1284, EXT I/O
Options
RFID, WLAN, Bluetooth
Printer Memory
48 MB Flash ROM, 64 MB SDRAM
Benefits
- RFID
- Easy operation
- Ease of setting, download and upload
- Enhanced connectivity
- Simple standalone mode
- Durable design
- Easy maintenance
- Multiple language support
- High-speed printing & fast throughput
- Standard emulations on board
- Environmentally friendly
- Right (RH) & Left (LH) models available
- 2 colour LCD and LED
- Face in / Face out Ribbon support
Accessories
Standard
- Interface Cards
Optional
- RFID option (factory installed)
- Memory Expansion
- Cleaning Kit
- Bluetooth
- Wireless Kit

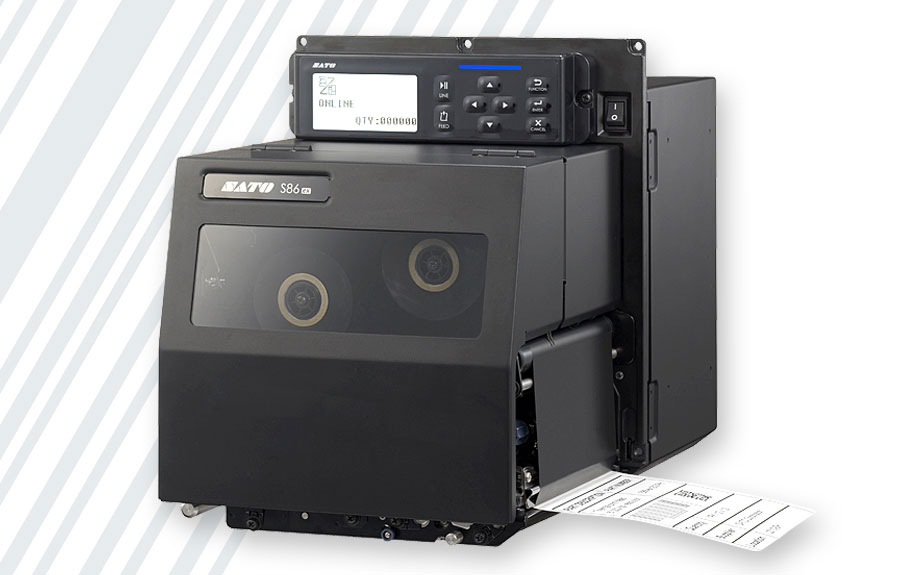

S86-EX - 6" OEM Print Engine
The S86-ex offers significant industry advancement in quality imaging, exceptional throughput, and incomparably easy operation, setup and maintenance.
The new generation of SATO Print Engines delivers flexibility and convenience, providing customers with numerous interfaces as well as tool-less maintenance, and optional wireless LAN and Bluetooth allow for even greater connectivity in continuously changing operating environments.
Suitable for:
Healthcare
Transport & Logistics
Food Industry
Automotive
Manufacturing
Features
Print Method
Direct Thermal & Thermal Transfer or Direct Thermal Only
Print Resolution
203 dpi, 305 dpi
Print Width
167.5mm - 6.59"
Print Speed
356mm/s - 14 inch per second
305mm/s - 12 inch per second
Ribbon Length
600m
Emulations
SZPL, SDPL
Interfaces
USB, LAN, RS232C, IEEE1284, EXT I/O
Options
RFID, WLAN, Bluetooth
Printer Memory
48 MB Flash ROM, 64 MB SDRAM
Benefits
- RFID
- Easy operation
- Ease of setting, download and upload
- Enhanced connectivity
- Simple standalone mode
- Durable design
- Easy maintenance
- Multiple language support
- High-speed printing & fast throughput
- Standard emulations on board
- Environmentally friendly
- Right (RH) & Left (LH) models available
- 2 colour LCD and LED
- Face in / Face out Ribbon support
Accessories
Standard
- Interface Cards
Optional
- RFID option (factory installed)
- Memory Expansion
- Cleaning Kit
- Bluetooth
- Wireless Kit

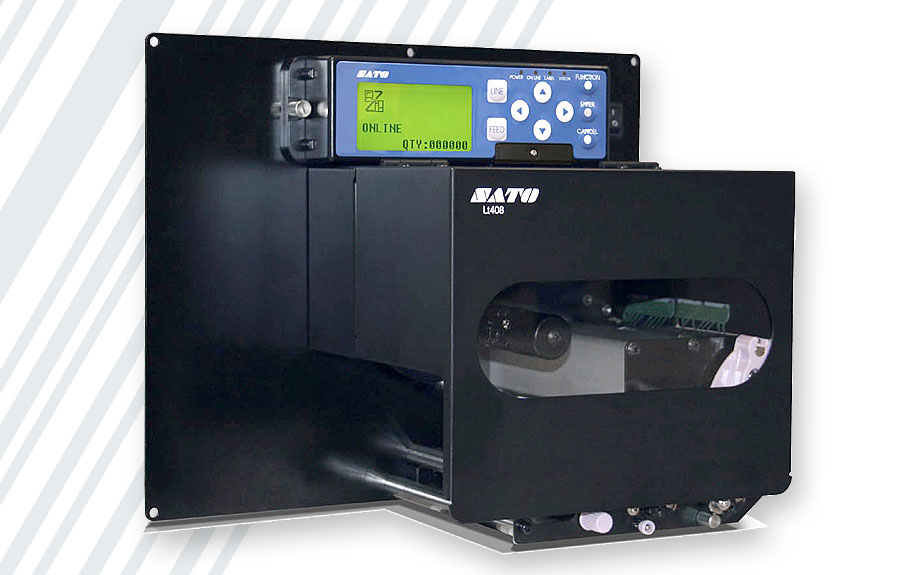

LT408 - Entry Level 4" Print Engine Range
The SATO LT408 has been designed and manufactured to meet the needs of the ‘entry-level’ print & apply markets, shipping / receiving and pallet labelling applications.
The print engine, when integrated with an applicator system, provides low-throughput, light-duty applications with an automated, yet affordable, print & apply labelling solution to replace labour intensive hand labelling or expensive pre-printed carton inventory.
The LT408 is a true OEM-style printer with an integrated applicator interface port and easy-to-service components.
Suitable for:
Healthcare
Transport & Logistics
Food Industry
Automotive
Manufacturing
Features
Print Method
Direct Thermal / Thermal Transfer
Print Resolution
203 dpi
Print Width
104mm - 4.1"
Print Speed
150mm/s - 6 inch per second
Ribbon Length
450m
Interfaces
External IO
Accessories
Real Time Clock, Interfaces & NiceLabel
Memory
4MB Flash ROM - 16MB SDRAM
Benefits
- Designed for Print & Apply systems
- Easy to navigate
- Right (RH) & Left (LH) models available
- Easy connectivity
- Large LCD display
- Easy maintenance
Accessories
Optional
- Interface Cards
- Ext I/O Interface
- Real Time Clock
- Cleaning Kit
- Wireless Kit
